This Meshcore repeater utilizes the RAK WisMesh 1W Booster Starter Kit (3401 + 13302). It is designed to be mounted to a pole or screwed to an eave or wall. It is powered by a 5W solar panel and a 18650 battery.
[!NOTE]
This Meshcore repeater build does require access to a 3D printer and preferably ASA filament.
Required Components
| Image | Item | Price (Aprox) | Purchase Link |
|---|---|---|---|

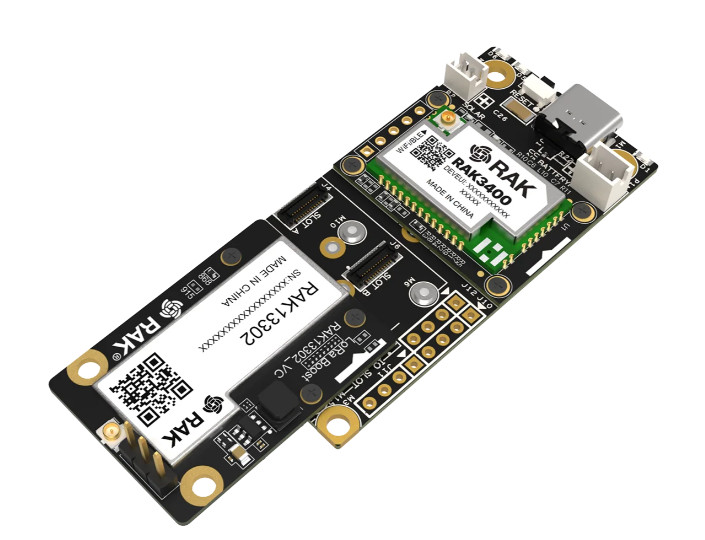

 | RAK WisMesh 1W Booster Starter Kit (3401 + 13302) | $40 | https://store.rakwireless.com/products/meshtastic-1w-lora-booster-kit-rak3401 |

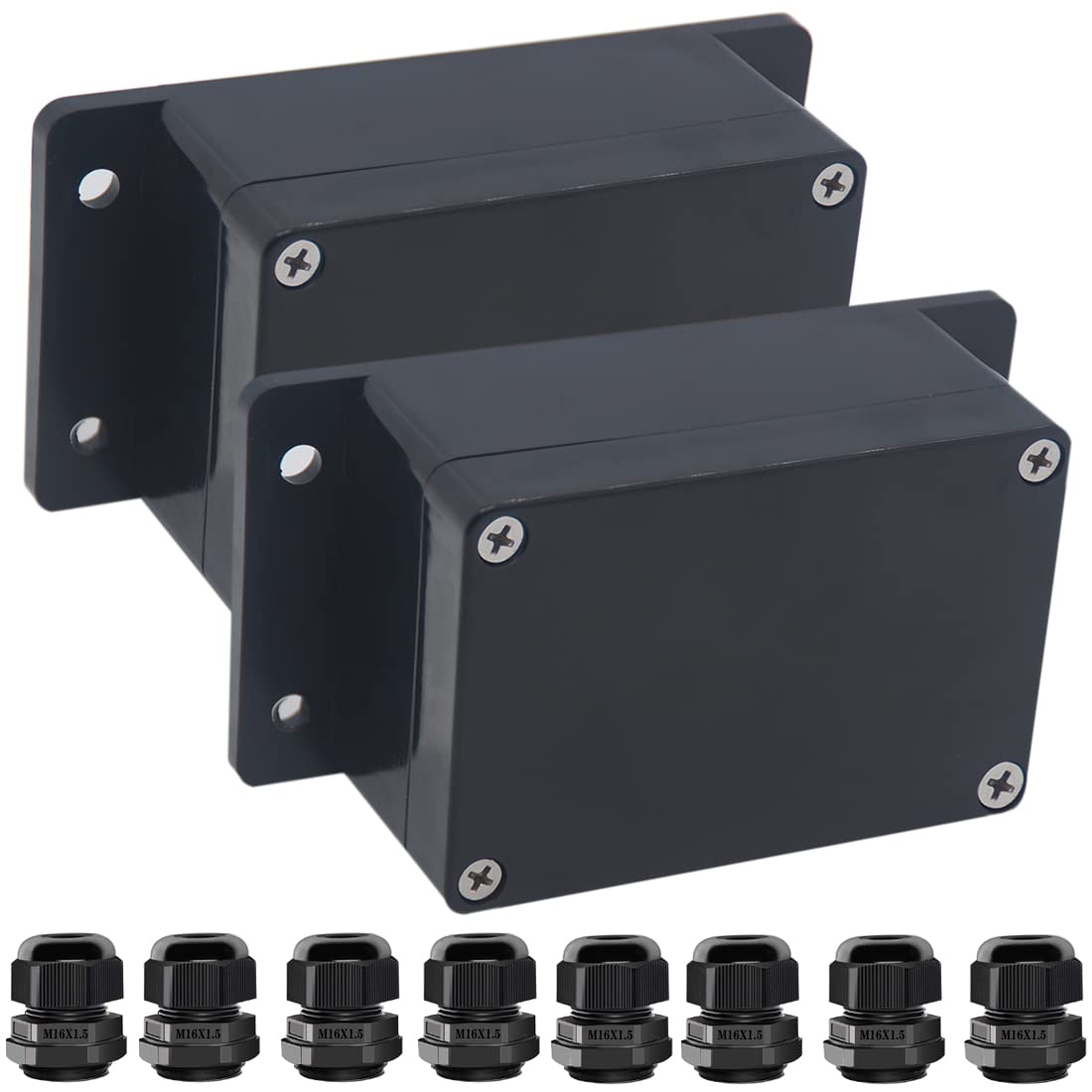

 | Plastic Enclosure | $10 | https://a.co/d/0eJ72ZKE |

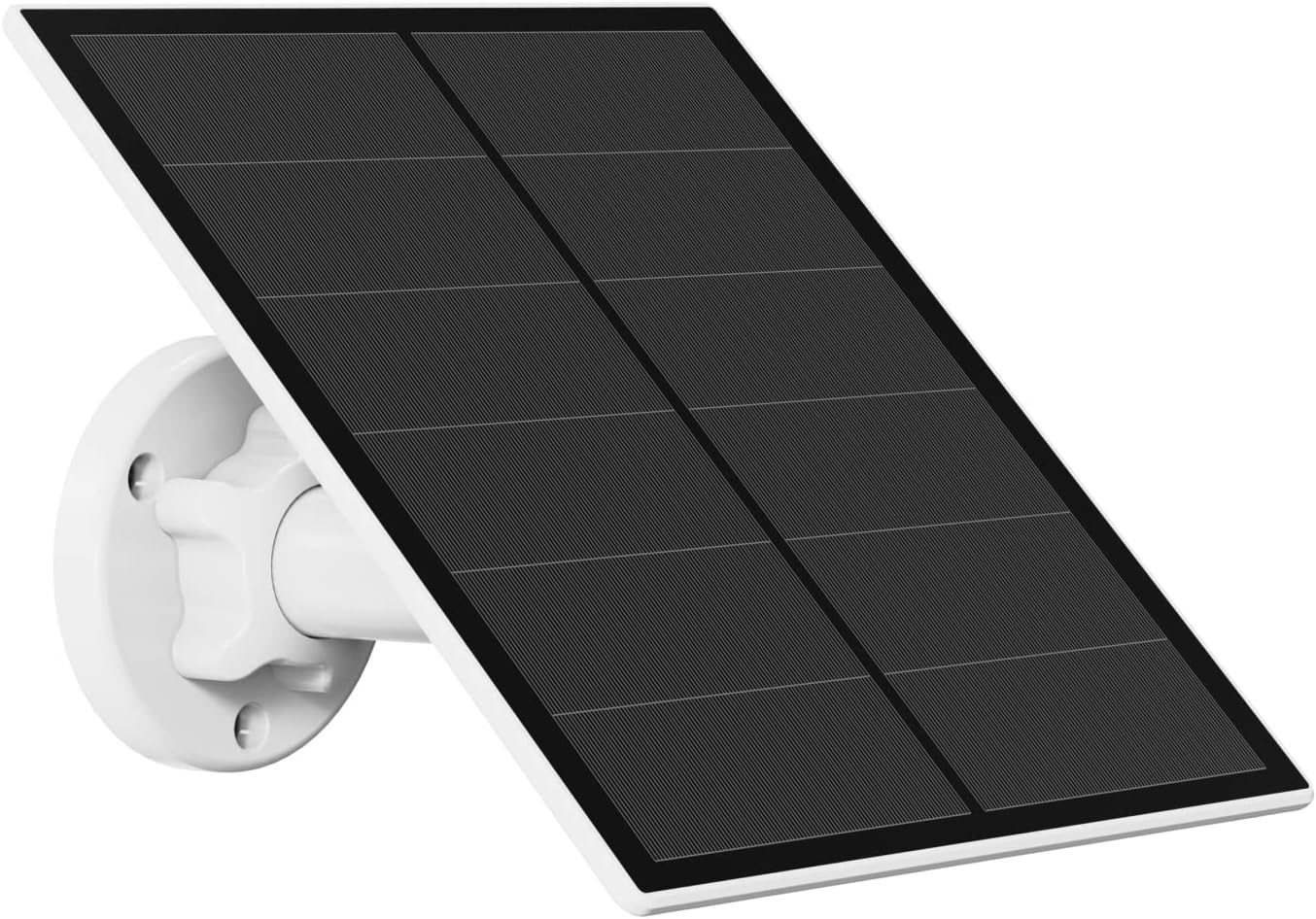

 | 5W Solar Panel | $16 | https://a.co/d/0aFSpDLX |

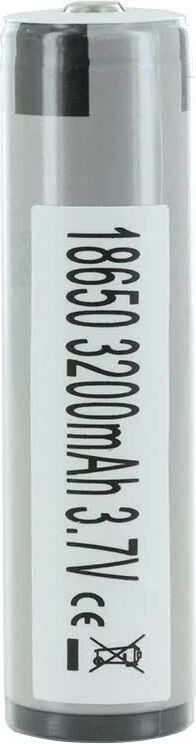

 | 18650 Panasonic Li-ion Battery NCR18650BD | $9 | https://batteryjunction.com |

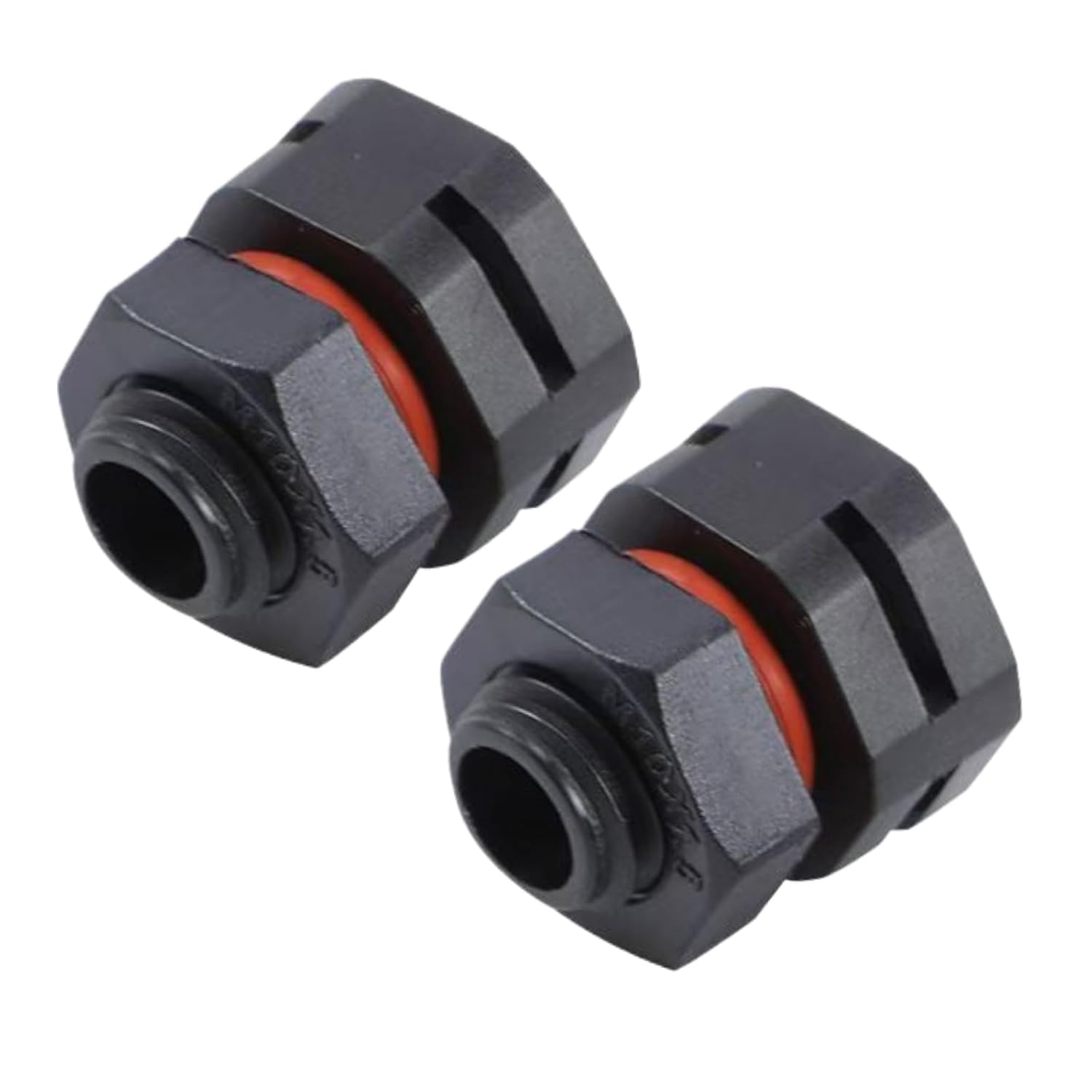

 | Waterproof Air Vent | $7 | https://a.co/d/0ePzzSVa |

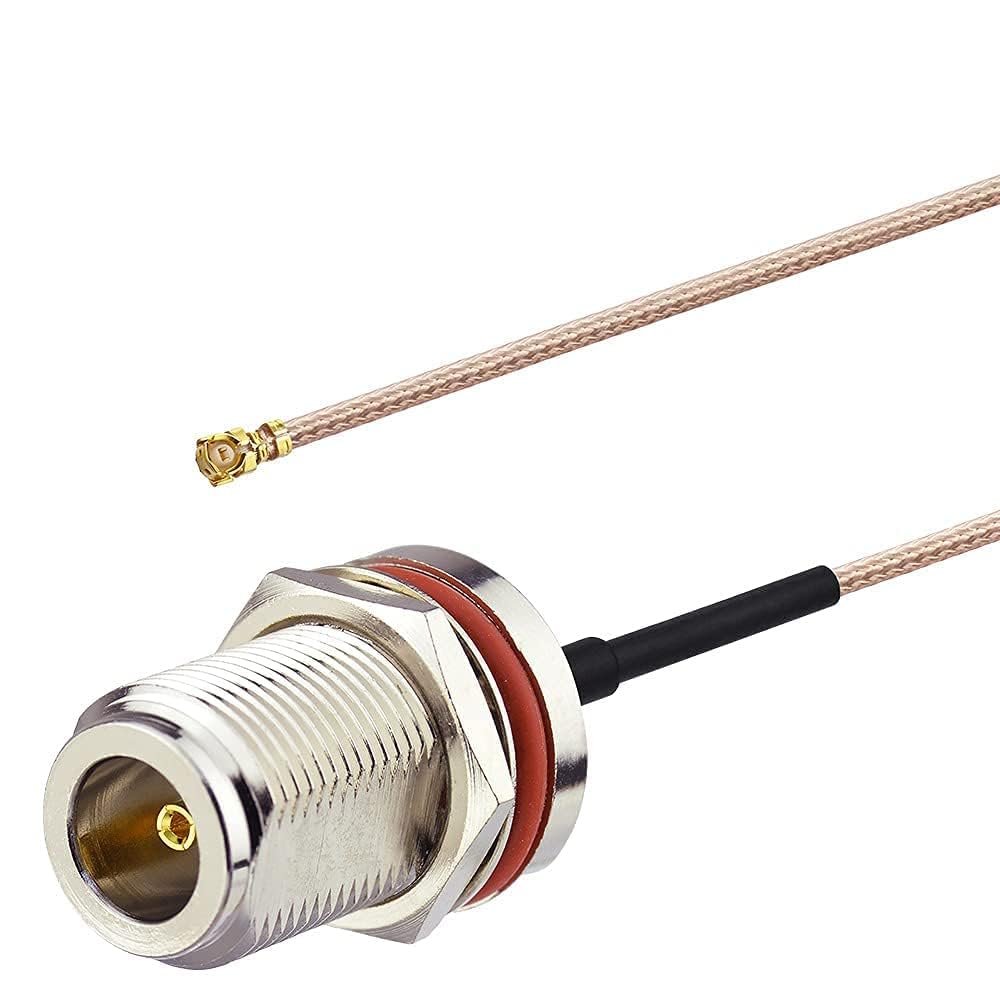

 | N Type Female Pigtail Cable | $8 | https://a.co/d/03O9nO5W |

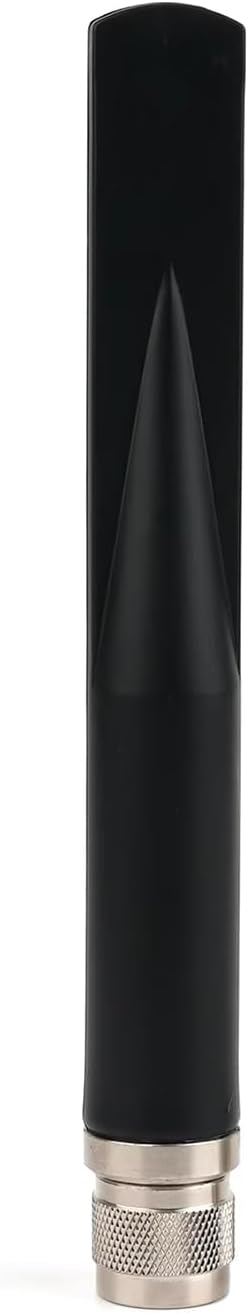

 | Outdoor Omni 915MHz Antenna | $14 | https://a.co/d/02lx5fHA |
3D Printed Parts
| Image | Part Name | Download Link |
|---|---|---|
 | Solar Pole Zip Mount | Download meshcore-solar-pole-zip.stl |
 | RAK Battery Holder | Download meshcore-rak-bat-holder.stl |
 | Case Hole Template | Download meshcore-case-hole-template.stl |
 | Antenna Clip | Download meshcore-antenna-clip.stl |
